OGRE Visual Test Output

Overall:

Reference Set:

Name: GL3Plus
Time: 2025-12-12 21:22:57
Version: 14.5 (Tsathoggua)
Resolution: 640 x 480
Comment: OpenGL 3+ Rendering Subsystem

Test Set:

Name: GL
Time: 2025-12-12 21:23:04
Version: 14.5 (Tsathoggua)
Resolution: 640 x 480
Comment: OpenGL Rendering Subsystem

56 of 89 tests passed.

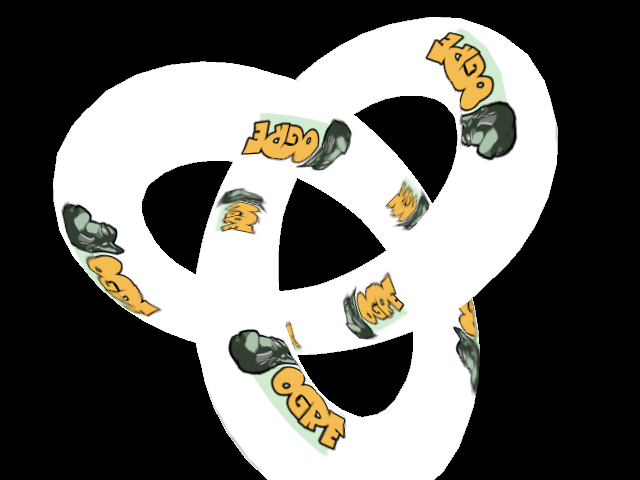

PlayPen_16Textures

Status: Passed

Original:

PlayPen_16Textures10 original

New:

PlayPen_16Textures10 new

Comparison Summary:

Images are identical.

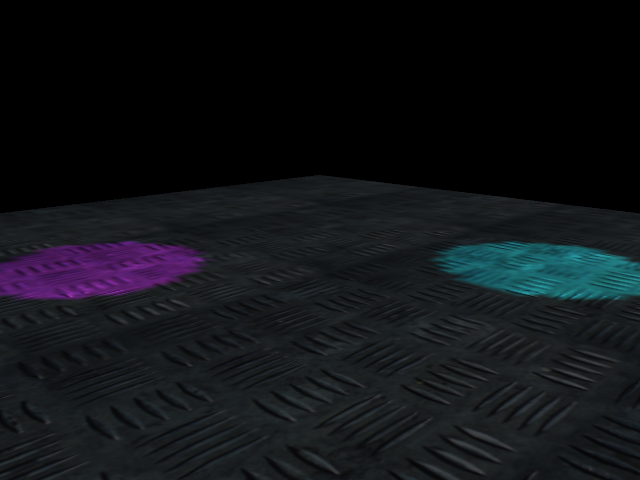

PlayPen_2Spotlights

Status: Failed

Original:

PlayPen_2Spotlights10 original

New:

PlayPen_2Spotlights10 new

Comparison Summary:

9639 pixels differed.

MSE | Overall: 0.0002 | R: 0.0001 | G: 0.0001 | B: 0.0005 |

PSNR| Overall: 35.470 | R: 38.404 | G: 37.502 | B: 32.763 |

Structural Similarity Index: 0.9899

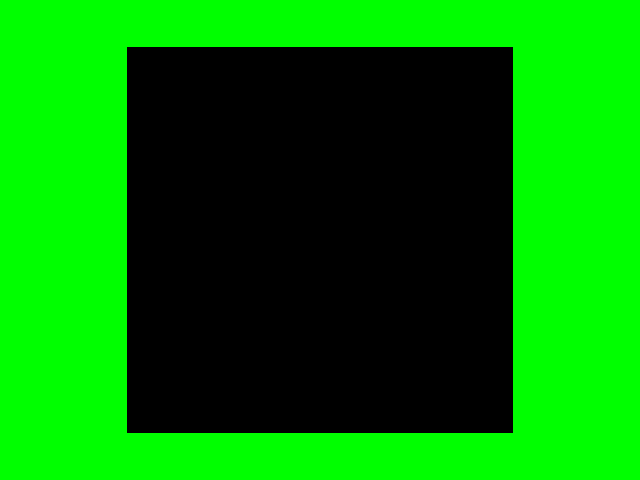

PlayPen_AlphaTex

Status: Failed

Original:

PlayPen_AlphaTex10 original

New:

PlayPen_AlphaTex10 new

Comparison Summary:

148996 pixels differed.

MSE | Overall: 0.0679 | R: 0.0000 | G: 0.2037 | B: 0.0000 |

PSNR| Overall: 11.681 | R: inf000 | G: 6.9101 | B: inf000 |

Structural Similarity Index: 0.5073

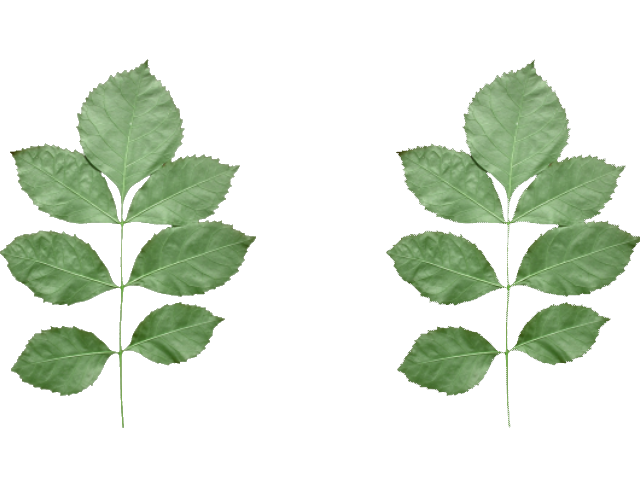

PlayPen_AlphaToCoverage

Status: Passed

Original:

PlayPen_AlphaToCoverage10 original

New:

PlayPen_AlphaToCoverage10 new

Comparison Summary:

16 pixels differed.

MSE | Overall: 0.0000 | R: 0.0000 | G: 0.0000 | B: 0.0000 |

PSNR| Overall: 58.115 | R: 57.978 | G: 59.701 | B: 57.064 |

Structural Similarity Index: 0.9999

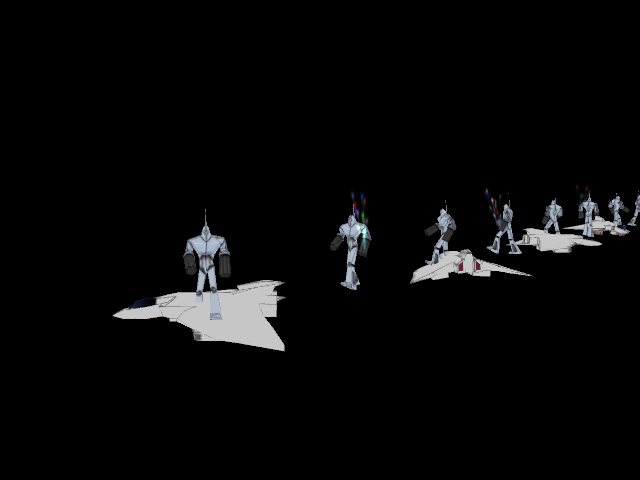

PlayPen_AttachObjectsToBones

Status: Passed

Original:

PlayPen_AttachObjectsToBones120 original

New:

PlayPen_AttachObjectsToBones120 new

Comparison Summary:

Images are identical.

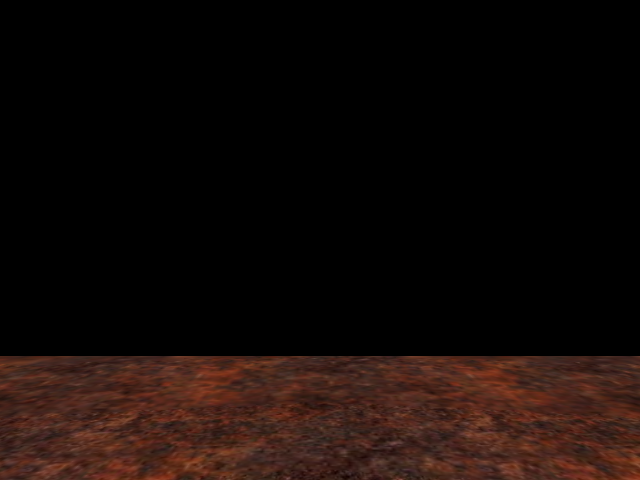

PlayPen_BasicPlane

Status: Passed

Original:

PlayPen_BasicPlane10 original

New:

PlayPen_BasicPlane10 new

Comparison Summary:

Images are identical.

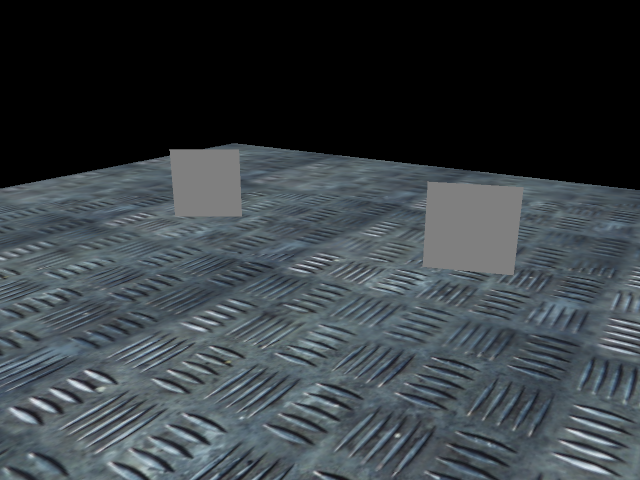

PlayPen_BillboardAccurateFacing

Status: Passed

Original:

PlayPen_BillboardAccurateFacing10 original

New:

PlayPen_BillboardAccurateFacing10 new

Comparison Summary:

Images are identical.

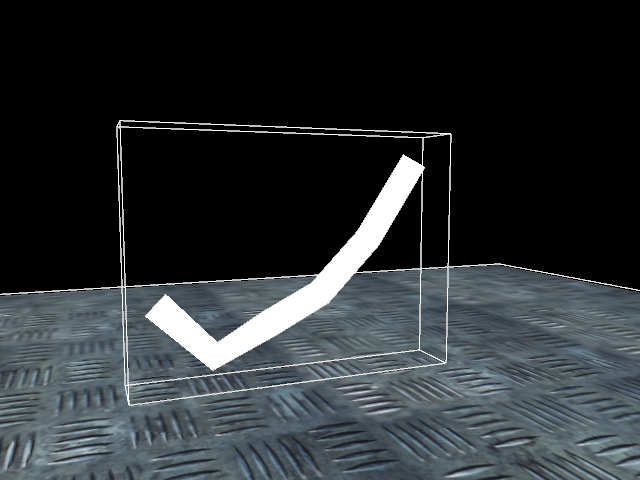

PlayPen_BillboardChain

Status: Passed

Original:

PlayPen_BillboardChain10 original

New:

PlayPen_BillboardChain10 new

Comparison Summary:

490 pixels differed.

MSE | Overall: 0.0000 | R: 0.0000 | G: 0.0000 | B: 0.0000 |

PSNR| Overall: 80.348 | R: 80.500 | G: 80.309 | B: 80.240 |

Structural Similarity Index: 1.0000

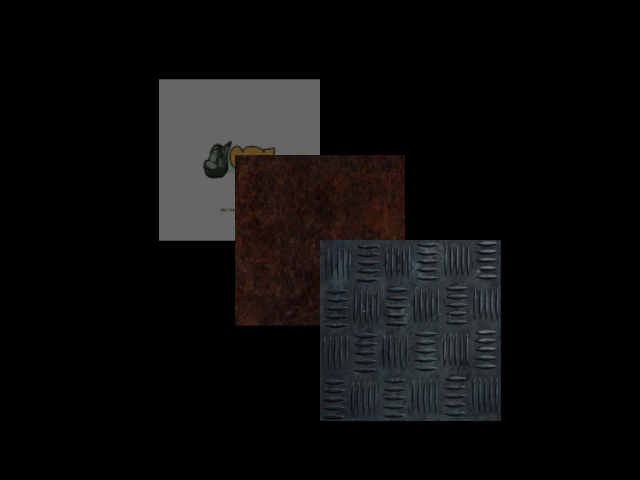

PlayPen_BillboardOrigins

Status: Passed

Original:

PlayPen_BillboardOrigins10 original

New:

PlayPen_BillboardOrigins10 new

Comparison Summary:

Images are identical.

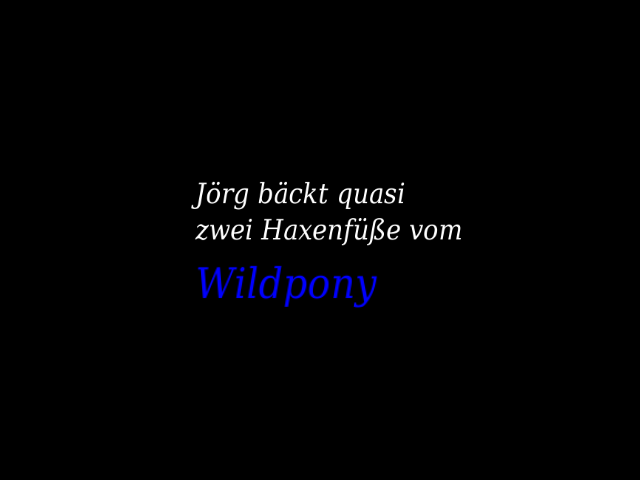

PlayPen_BillboardText

Status: Passed

Original:

PlayPen_BillboardText1 original

New:

PlayPen_BillboardText1 new

Comparison Summary:

Images are identical.

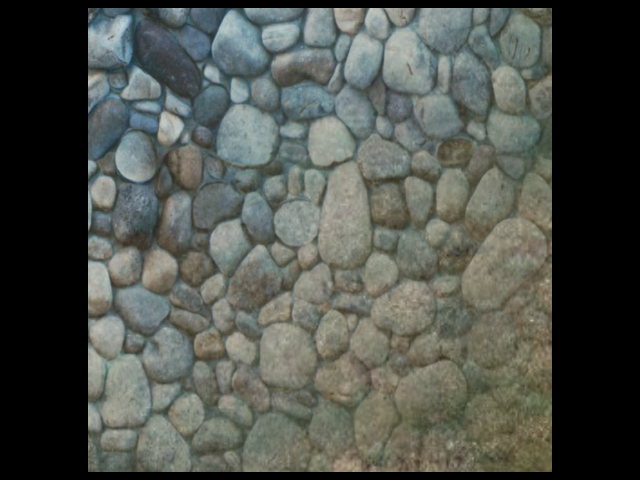

PlayPen_BlendDiffuseColour

Status: Passed

Original:

PlayPen_BlendDiffuseColour10 original

New:

PlayPen_BlendDiffuseColour10 new

Comparison Summary:

Images are identical.

PlayPen_BlitSubTextures

Status: Failed

Original:

PlayPen_BlitSubTextures10 original

New:

PlayPen_BlitSubTextures10 new

Comparison Summary:

8650 pixels differed.

MSE | Overall: 0.0170 | R: 0.0195 | G: 0.0176 | B: 0.0139 |

PSNR| Overall: 17.679 | R: 17.090 | G: 17.523 | B: 18.551 |

Structural Similarity Index: 0.9652

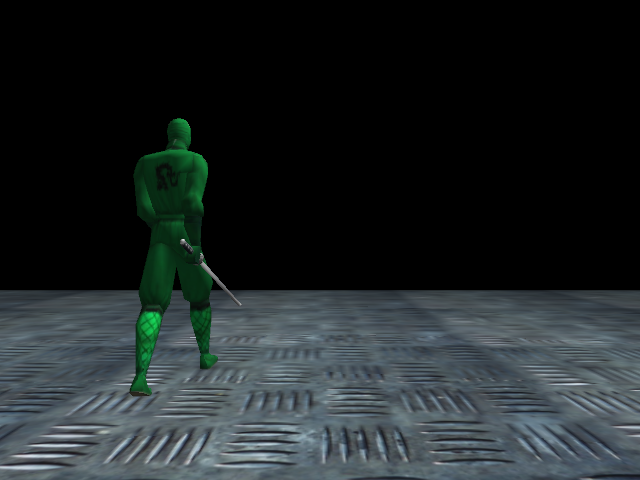

PlayPen_BuildTangentOnAnimatedMesh

Status: Failed

Original:

PlayPen_BuildTangentOnAnimatedMesh50 original

New:

PlayPen_BuildTangentOnAnimatedMesh50 new

Comparison Summary:

35431 pixels differed.

MSE | Overall: 0.0000 | R: 0.0000 | G: 0.0000 | B: 0.0000 |

PSNR| Overall: 46.867 | R: 48.331 | G: 45.374 | B: 47.442 |

Structural Similarity Index: 0.9985

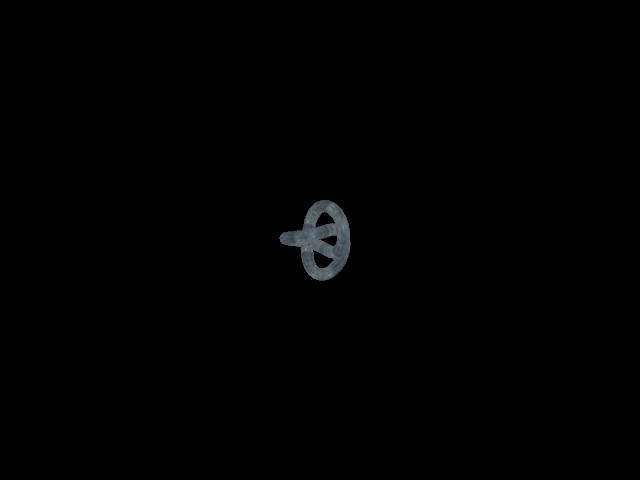

PlayPen_CameraSetDirection

Status: Passed

Original:

PlayPen_CameraSetDirection10 original

New:

PlayPen_CameraSetDirection10 new

Comparison Summary:

Images are identical.

PlayPen_ClearScene

Status: Passed

Original:

PlayPen_ClearScene25 original

New:

PlayPen_ClearScene25 new

Comparison Summary:

Images are identical.

PlayPen_CompositorTechniqueSwitch

Status: Passed

Original:

PlayPen_CompositorTechniqueSwitch15 original

New:

PlayPen_CompositorTechniqueSwitch15 new

Comparison Summary:

Images are identical.

PlayPen_CompositorTextureShadows

Status: Failed

Original:

PlayPen_CompositorTextureShadows10 original

New:

PlayPen_CompositorTextureShadows10 new

Comparison Summary:

170851 pixels differed.

MSE | Overall: 0.0010 | R: 0.0009 | G: 0.0011 | B: 0.0010 |

PSNR| Overall: 29.805 | R: 30.260 | G: 29.293 | B: 29.917 |

Structural Similarity Index: 0.9336

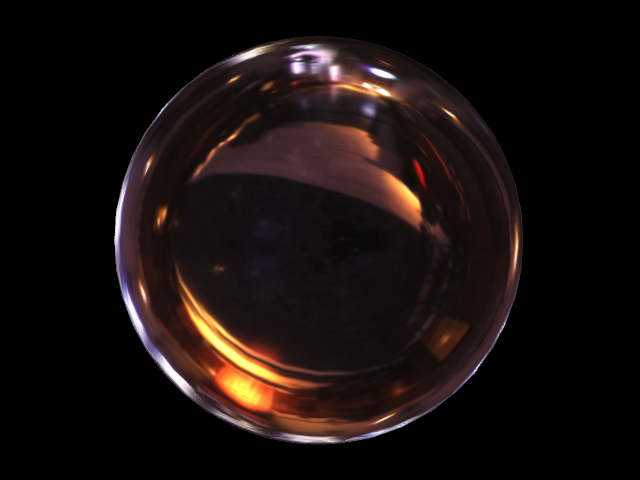

PlayPen_CubeDDS

Status: Passed

Original:

PlayPen_CubeDDS10 original

New:

PlayPen_CubeDDS10 new

Comparison Summary:

19 pixels differed.

MSE | Overall: 0.0000 | R: 0.0000 | G: 0.0000 | B: 0.0000 |

PSNR| Overall: 94.352 | R: 92.213 | G: 95.223 | B: 96.984 |

Structural Similarity Index: 1.0000

PlayPen_CustomProjectionMatrix

Status: Passed

Original:

PlayPen_CustomProjectionMatrix3 original

New:

PlayPen_CustomProjectionMatrix3 new

Comparison Summary:

Images are identical.

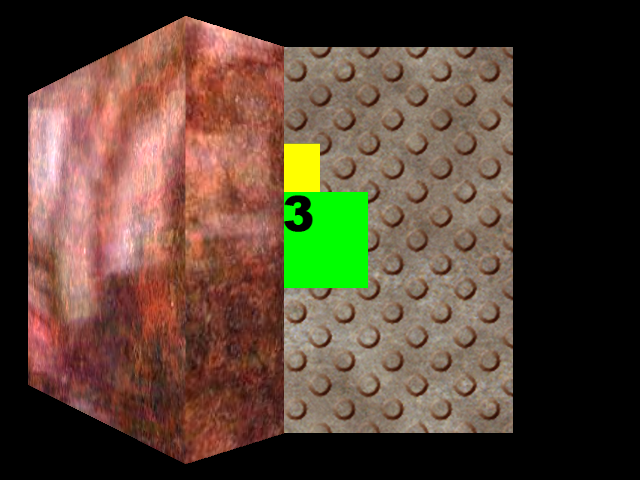

PlayPen_DepthBias

Status: Passed

Original:

PlayPen_DepthBias10 original

New:

PlayPen_DepthBias10 new

Comparison Summary:

4336 pixels differed.

MSE | Overall: 0.0000 | R: 0.0000 | G: 0.0000 | B: 0.0000 |

PSNR| Overall: 53.124 | R: 52.253 | G: 53.085 | B: 54.266 |

Structural Similarity Index: 0.9996

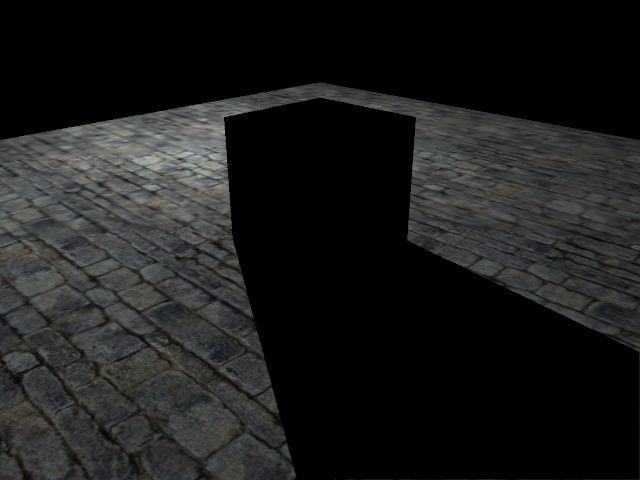

PlayPen_DepthShadowMap

Status: Passed

Original:

PlayPen_DepthShadowMap10 original

New:

PlayPen_DepthShadowMap10 new

Comparison Summary:

Images are identical.

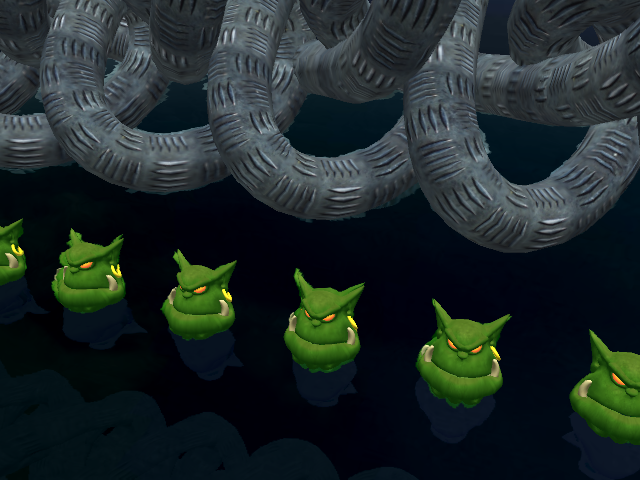

PlayPen_Distortion

Status: Failed

Original:

PlayPen_Distortion15 original

New:

PlayPen_Distortion15 new

Comparison Summary:

75450 pixels differed.

MSE | Overall: 0.0000 | R: 0.0000 | G: 0.0000 | B: 0.0000 |

PSNR| Overall: 44.084 | R: 44.392 | G: 43.402 | B: 44.549 |

Structural Similarity Index: 0.9973

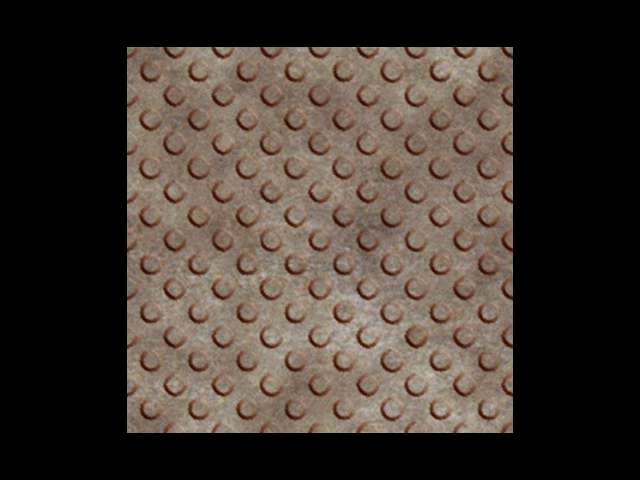

PlayPen_Dxt1

Status: Passed

Original:

PlayPen_Dxt110 original

New:

PlayPen_Dxt110 new

Comparison Summary:

Images are identical.

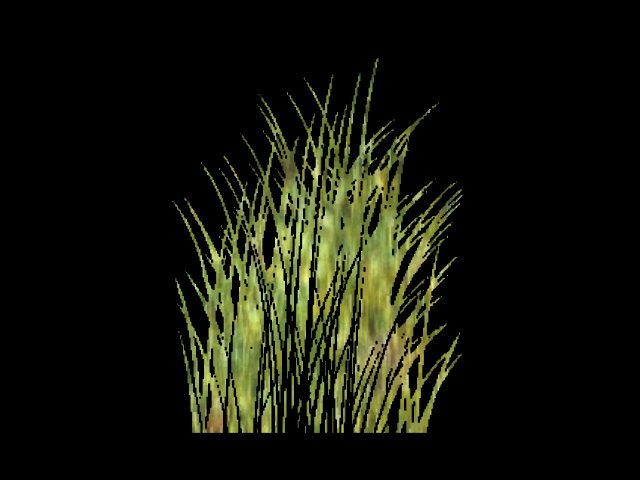

PlayPen_Dxt1Alpha

Status: Passed

Original:

PlayPen_Dxt1Alpha10 original

New:

PlayPen_Dxt1Alpha10 new

Comparison Summary:

45 pixels differed.

MSE | Overall: 0.0000 | R: 0.0000 | G: 0.0000 | B: 0.0000 |

PSNR| Overall: 57.031 | R: 56.316 | G: 55.430 | B: 61.284 |

Structural Similarity Index: 0.9999

PlayPen_Dxt1FromMemory

Status: Passed

Original:

PlayPen_Dxt1FromMemory10 original

New:

PlayPen_Dxt1FromMemory10 new

Comparison Summary:

Images are identical.

PlayPen_Dxt3

Status: Passed

Original:

PlayPen_Dxt310 original

New:

PlayPen_Dxt310 new

Comparison Summary:

Images are identical.

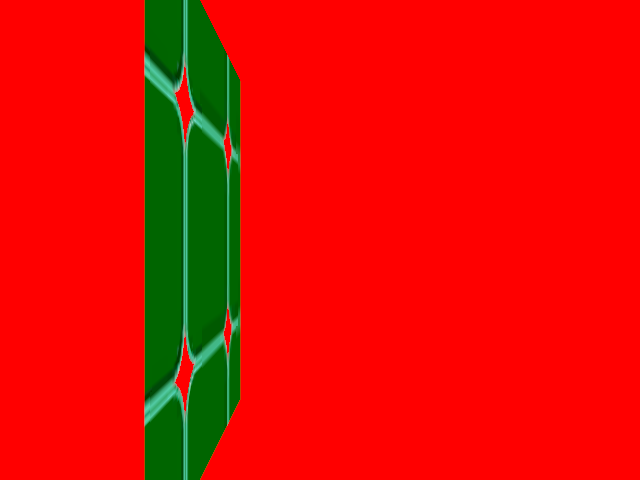

PlayPen_Dxt3FromMemory

Status: Passed

Original:

PlayPen_Dxt3FromMemory10 original

New:

PlayPen_Dxt3FromMemory10 new

Comparison Summary:

Images are identical.

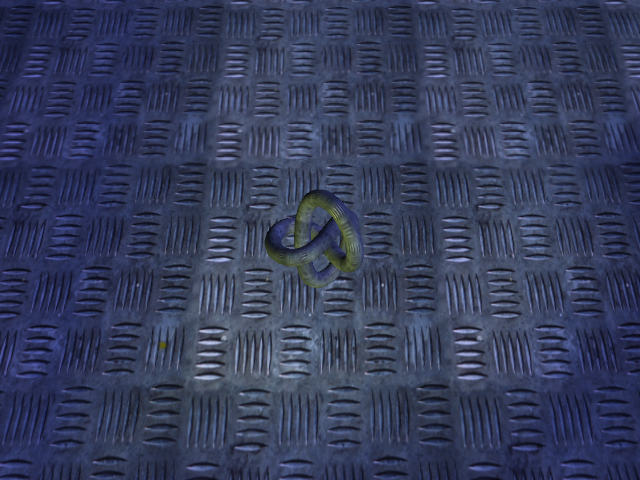

PlayPen_FarFromOrigin

Status: Failed

Original:

PlayPen_FarFromOrigin10 original

New:

PlayPen_FarFromOrigin10 new

Comparison Summary:

199679 pixels differed.

MSE | Overall: 0.0007 | R: 0.0008 | G: 0.0010 | B: 0.0002 |

PSNR| Overall: 31.438 | R: 30.888 | G: 29.722 | B: 35.638 |

Structural Similarity Index: 0.9834

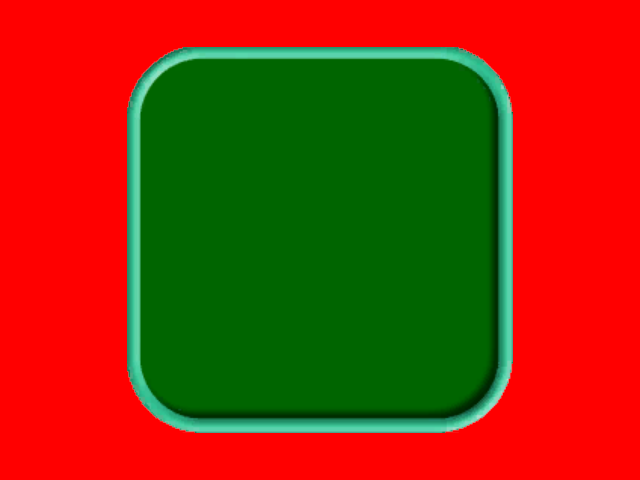

PlayPen_Float128DDS

Status: Passed

Original:

PlayPen_Float128DDS250 original

New:

PlayPen_Float128DDS250 new

Comparison Summary:

Images are identical.

PlayPen_Float16DDS

Status: Failed

Original:

PlayPen_Float16DDS250 original

New:

PlayPen_Float16DDS250 new

Comparison Summary:

148996 pixels differed.

MSE | Overall: 0.0931 | R: 0.0000 | G: 0.1397 | B: 0.1397 |

PSNR| Overall: 10.308 | R: inf000 | G: 8.5471 | B: 8.5471 |

Structural Similarity Index: 0.6038

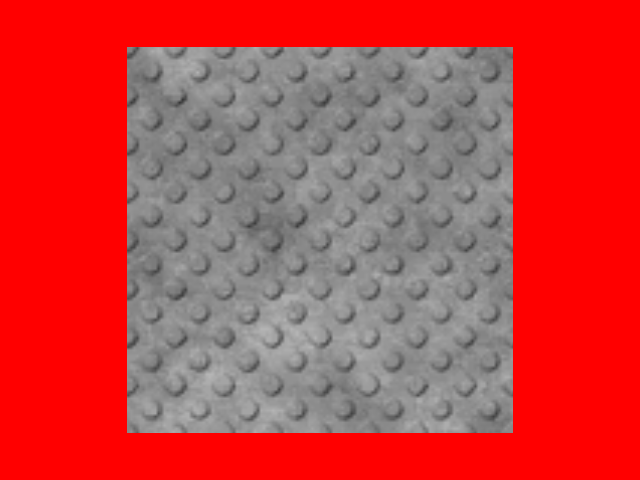

PlayPen_Float32DDS

Status: Failed

Original:

PlayPen_Float32DDS250 original

New:

PlayPen_Float32DDS250 new

Comparison Summary:

148996 pixels differed.

MSE | Overall: 0.0931 | R: 0.0000 | G: 0.1397 | B: 0.1397 |

PSNR| Overall: 10.308 | R: inf000 | G: 8.5478 | B: 8.5478 |

Structural Similarity Index: 0.6038

PlayPen_Float64DDS

Status: Passed

Original:

PlayPen_Float64DDS250 original

New:

PlayPen_Float64DDS250 new

Comparison Summary:

Images are identical.

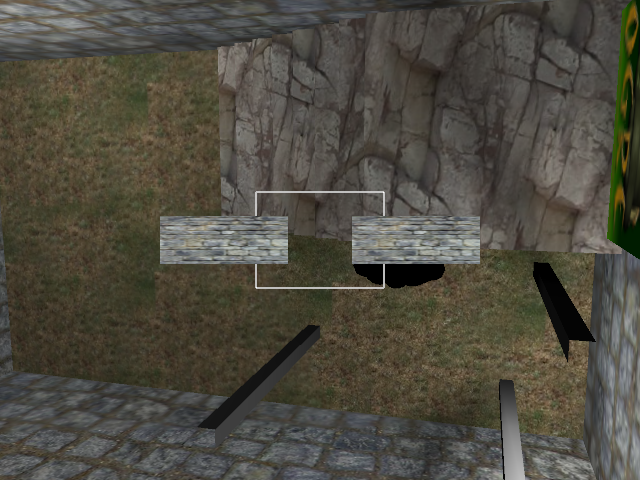

PlayPen_InfiniteAAB

Status: Failed

Original:

PlayPen_InfiniteAAB15 original

New:

PlayPen_InfiniteAAB15 new

Comparison Summary:

7440 pixels differed.

MSE | Overall: 0.0056 | R: 0.0056 | G: 0.0056 | B: 0.0056 |

PSNR| Overall: 22.509 | R: 22.514 | G: 22.511 | B: 22.501 |

Structural Similarity Index: 0.9669

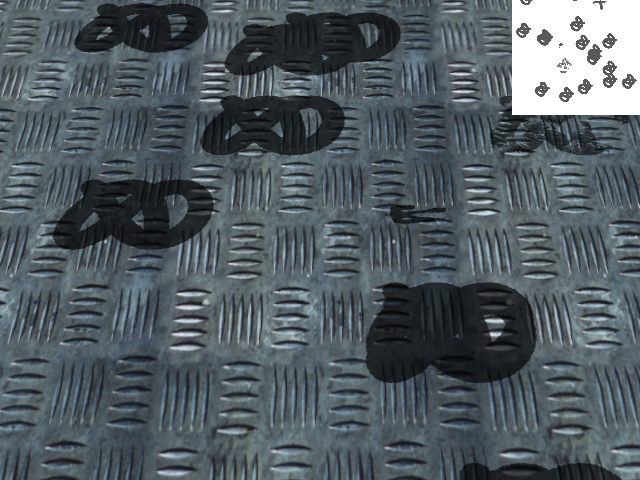

PlayPen_LiSPSM

Status: Failed

Original:

PlayPen_LiSPSM10 original

New:

PlayPen_LiSPSM10 new

Comparison Summary:

4826 pixels differed.

MSE | Overall: 0.0004 | R: 0.0004 | G: 0.0004 | B: 0.0005 |

PSNR| Overall: 33.155 | R: 33.898 | G: 33.031 | B: 32.631 |

Structural Similarity Index: 0.9908

PlayPen_LightClipPlanes

Status: Failed

Original:

PlayPen_LightClipPlanes10 original

New:

PlayPen_LightClipPlanes10 new

Comparison Summary:

65450 pixels differed.

MSE | Overall: 0.0142 | R: 0.0120 | G: 0.0238 | B: 0.0069 |

PSNR| Overall: 18.452 | R: 19.197 | G: 16.222 | B: 21.582 |

Structural Similarity Index: 0.7885

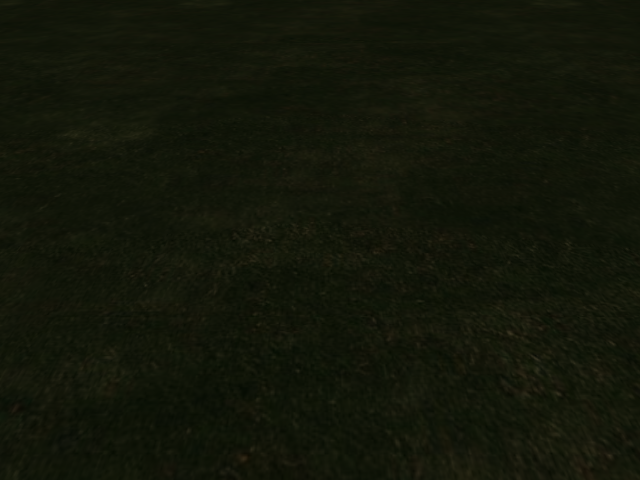

PlayPen_LightClipPlanesMoreLights

Status: Failed

Original:

PlayPen_LightClipPlanesMoreLights10 original

New:

PlayPen_LightClipPlanesMoreLights10 new

Comparison Summary:

307200 pixels differed.

MSE | Overall: 0.0402 | R: 0.0305 | G: 0.0671 | B: 0.0229 |

PSNR| Overall: 13.956 | R: 15.151 | G: 11.730 | B: 16.392 |

Structural Similarity Index: 0.3630

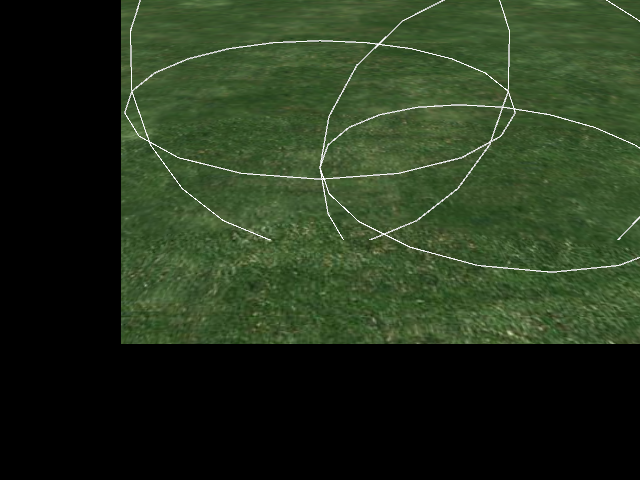

PlayPen_LightScissoring

Status: Passed

Original:

PlayPen_LightScissoring10 original

New:

PlayPen_LightScissoring10 new

Comparison Summary:

58 pixels differed.

MSE | Overall: 0.0000 | R: 0.0000 | G: 0.0000 | B: 0.0000 |

PSNR| Overall: 89.202 | R: 88.691 | G: 89.782 | B: 89.202 |

Structural Similarity Index: 1.0000

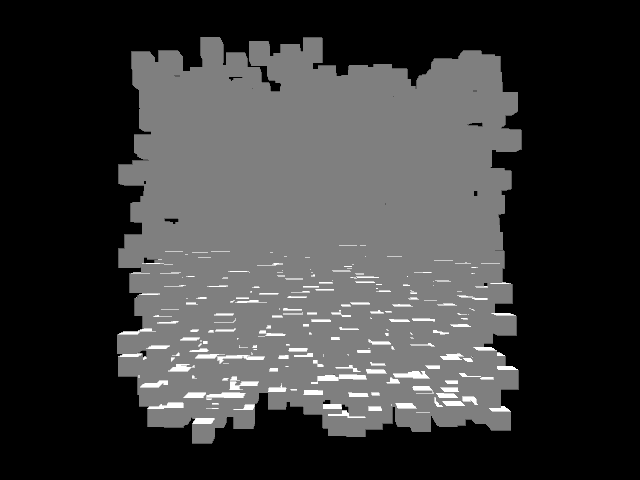

PlayPen_LotsAndLotsOfEntities

Status: Passed

Original:

PlayPen_LotsAndLotsOfEntities3 original

New:

PlayPen_LotsAndLotsOfEntities3 new

Comparison Summary:

Images are identical.

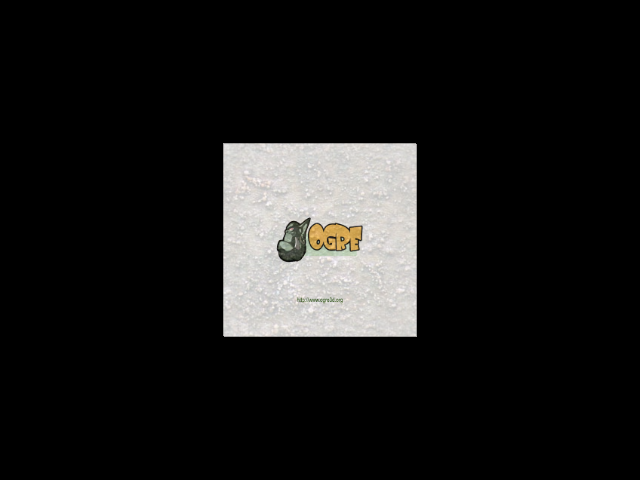

PlayPen_ManualBlending

Status: Passed

Original:

PlayPen_ManualBlending10 original

New:

PlayPen_ManualBlending10 new

Comparison Summary:

Images are identical.

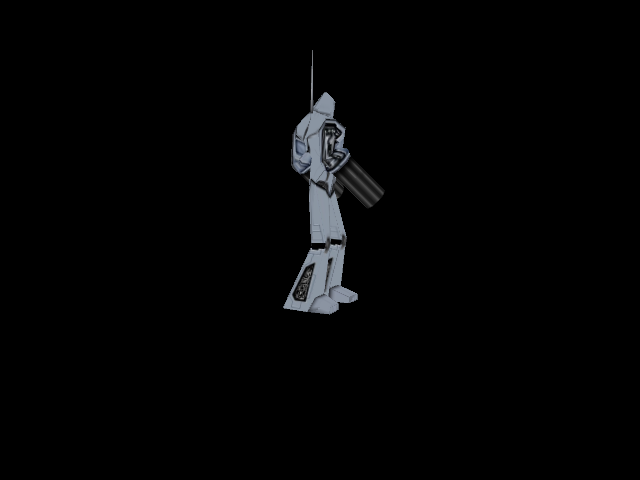

PlayPen_ManualBoneMovement

Status: Passed

Original:

PlayPen_ManualBoneMovement50 original

New:

PlayPen_ManualBoneMovement50 new

Comparison Summary:

Images are identical.

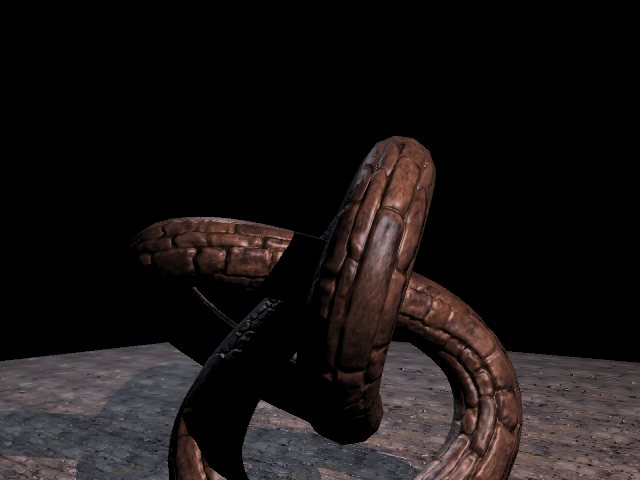

PlayPen_ManualIlluminationStage

Status: Passed

Original:

PlayPen_ManualIlluminationStage10 original

New:

PlayPen_ManualIlluminationStage10 new

Comparison Summary:

Images are identical.

PlayPen_ManualLOD

Status: Passed

Original:

PlayPen_ManualLOD75 original

New:

PlayPen_ManualLOD75 new

Comparison Summary:

Images are identical.

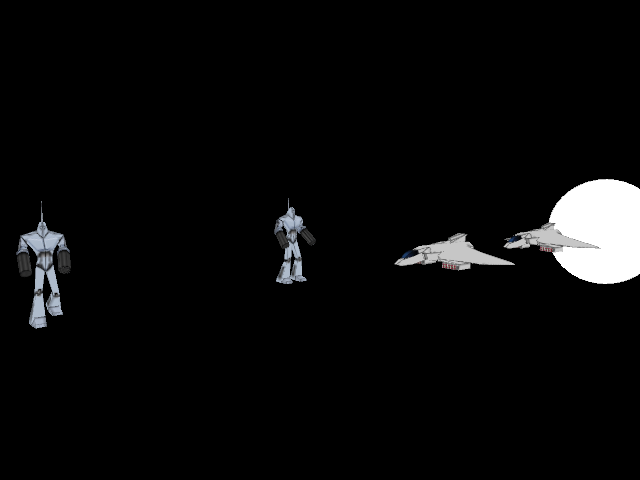

PlayPen_ManualLOD_File

Status: Passed

Original:

PlayPen_ManualLOD_File75 original

New:

PlayPen_ManualLOD_File75 new

Comparison Summary:

Images are identical.

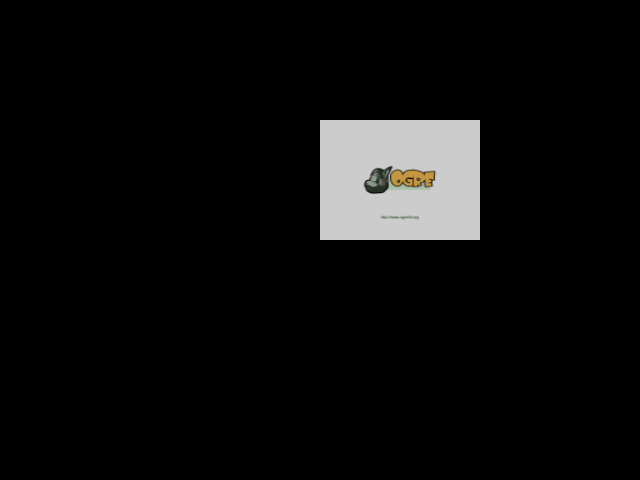

PlayPen_ManualObject2D

Status: Passed

Original:

PlayPen_ManualObject2D10 original

New:

PlayPen_ManualObject2D10 new

Comparison Summary:

Images are identical.

PlayPen_ManualObjectIndexed

Status: Passed

Original:

PlayPen_ManualObjectIndexed10 original

New:

PlayPen_ManualObjectIndexed10 new

Comparison Summary:

77 pixels differed.

MSE | Overall: 0.0000 | R: 0.0000 | G: 0.0000 | B: 0.0000 |

PSNR| Overall: 71.141 | R: 71.727 | G: 70.697 | B: 71.059 |

Structural Similarity Index: 0.9999

PlayPen_ManualObjectIndexedUpdateLarger

Status: Passed

Original:

PlayPen_ManualObjectIndexedUpdateLarger10 original

New:

PlayPen_ManualObjectIndexedUpdateLarger10 new

Comparison Summary:

72 pixels differed.

MSE | Overall: 0.0000 | R: 0.0000 | G: 0.0000 | B: 0.0000 |

PSNR| Overall: 71.276 | R: 71.852 | G: 70.832 | B: 71.203 |

Structural Similarity Index: 0.9999

PlayPen_ManualObjectIndexedUpdateSmaller

Status: Passed

Original:

PlayPen_ManualObjectIndexedUpdateSmaller10 original

New:

PlayPen_ManualObjectIndexedUpdateSmaller10 new

Comparison Summary:

78 pixels differed.

MSE | Overall: 0.0000 | R: 0.0000 | G: 0.0000 | B: 0.0000 |

PSNR| Overall: 71.140 | R: 71.727 | G: 70.695 | B: 71.059 |

Structural Similarity Index: 0.9999

PlayPen_ManualObjectNonIndexed

Status: Passed

Original:

PlayPen_ManualObjectNonIndexed10 original

New:

PlayPen_ManualObjectNonIndexed10 new

Comparison Summary:

77 pixels differed.

MSE | Overall: 0.0000 | R: 0.0000 | G: 0.0000 | B: 0.0000 |

PSNR| Overall: 71.141 | R: 71.727 | G: 70.697 | B: 71.059 |

Structural Similarity Index: 0.9999

PlayPen_ManualObjectNonIndexedUpdateLarger

Status: Passed

Original:

PlayPen_ManualObjectNonIndexedUpdateLarger10 original

New:

PlayPen_ManualObjectNonIndexedUpdateLarger10 new

Comparison Summary:

72 pixels differed.

MSE | Overall: 0.0000 | R: 0.0000 | G: 0.0000 | B: 0.0000 |

PSNR| Overall: 71.276 | R: 71.852 | G: 70.832 | B: 71.203 |

Structural Similarity Index: 0.9999

PlayPen_ManualObjectNonIndexedUpdateSmaller

Status: Passed

Original:

PlayPen_ManualObjectNonIndexedUpdateSmaller10 original

New:

PlayPen_ManualObjectNonIndexedUpdateSmaller10 new

Comparison Summary:

74 pixels differed.

MSE | Overall: 0.0000 | R: 0.0000 | G: 0.0000 | B: 0.0000 |

PSNR| Overall: 71.143 | R: 71.727 | G: 70.700 | B: 71.065 |

Structural Similarity Index: 0.9999

PlayPen_MaterialSchemes

Status: Passed

Original:

PlayPen_MaterialSchemes10 original

New:

PlayPen_MaterialSchemes10 new

Comparison Summary:

Images are identical.

PlayPen_MorphAnimNoNormals

Status: Failed

Original:

PlayPen_MorphAnimNoNormals200 original

New:

PlayPen_MorphAnimNoNormals200 new

Comparison Summary:

42763 pixels differed.

MSE | Overall: 0.0341 | R: 0.1024 | G: 0.0000 | B: 0.0000 |

PSNR| Overall: 14.665 | R: 9.8949 | G: 53.492 | B: 53.492 |

Structural Similarity Index: 0.8942

PlayPen_MorphAnimNormals

Status: Failed

Original:

PlayPen_MorphAnimNormals200 original

New:

PlayPen_MorphAnimNormals200 new

Comparison Summary:

71546 pixels differed.

MSE | Overall: 0.0177 | R: 0.0512 | G: 0.0010 | B: 0.0010 |

PSNR| Overall: 17.500 | R: 12.899 | G: 29.872 | B: 29.872 |

Structural Similarity Index: 0.8921

PlayPen_MultiSceneManagersSimple

Status: Passed

Original:

PlayPen_MultiSceneManagersSimple10 original

New:

PlayPen_MultiSceneManagersSimple10 new

Comparison Summary:

2296 pixels differed.

MSE | Overall: 0.0000 | R: 0.0000 | G: 0.0000 | B: 0.0000 |

PSNR| Overall: 59.232 | R: 56.680 | G: 58.440 | B: inf000 |

Structural Similarity Index: 0.9998

PlayPen_MultiViewports

Status: Failed

Original:

PlayPen_MultiViewports10 original

New:

PlayPen_MultiViewports10 new

Comparison Summary:

15575 pixels differed.

MSE | Overall: 0.0000 | R: 0.0000 | G: 0.0000 | B: 0.0000 |

PSNR| Overall: 49.550 | R: 50.078 | G: 48.658 | B: 50.074 |

Structural Similarity Index: 0.9989

PlayPen_NegativeScale

Status: Failed

Original:

PlayPen_NegativeScale10 original

New:

PlayPen_NegativeScale10 new

Comparison Summary:

73523 pixels differed.

MSE | Overall: 0.0000 | R: 0.0000 | G: 0.0000 | B: 0.0000 |

PSNR| Overall: 43.164 | R: 44.171 | G: 43.016 | B: 42.472 |

Structural Similarity Index: 0.9946

PlayPen_NormalMapMirroredUVs

Status: Passed

Original:

PlayPen_NormalMapMirroredUVs10 original

New:

PlayPen_NormalMapMirroredUVs10 new

Comparison Summary:

Images are identical.

PlayPen_Ortho

Status: Passed

Original:

PlayPen_Ortho10 original

New:

PlayPen_Ortho10 new

Comparison Summary:

5755 pixels differed.

MSE | Overall: 0.0000 | R: 0.0000 | G: 0.0000 | B: 0.0000 |

PSNR| Overall: 56.070 | R: 57.077 | G: 55.900 | B: 55.399 |

Structural Similarity Index: 0.9994

PlayPen_PBR

Status: Passed

Original:

PlayPen_PBR1 original

New:

PlayPen_PBR1 new

Comparison Summary:

Images are identical.

PlayPen_PointSprites

Status: Failed

Original:

PlayPen_PointSprites10 original

New:

PlayPen_PointSprites10 new

Comparison Summary:

281920 pixels differed.

MSE | Overall: 0.0008 | R: 0.0008 | G: 0.0008 | B: 0.0009 |

PSNR| Overall: 30.549 | R: 30.608 | G: 30.606 | B: 30.436 |

Structural Similarity Index: 0.9797

PlayPen_PoseAnimNoNormals

Status: Failed

Original:

PlayPen_PoseAnimNoNormals200 original

New:

PlayPen_PoseAnimNoNormals200 new

Comparison Summary:

31713 pixels differed.

MSE | Overall: 0.0342 | R: 0.1027 | G: 0.0000 | B: 0.0000 |

PSNR| Overall: 14.655 | R: 9.8842 | G: inf000 | B: inf000 |

Structural Similarity Index: 0.8890

PlayPen_PoseAnimNormals

Status: Failed

Original:

PlayPen_PoseAnimNormals200 original

New:

PlayPen_PoseAnimNormals200 new

Comparison Summary:

31713 pixels differed.

MSE | Overall: 0.0211 | R: 0.0633 | G: 0.0000 | B: 0.0000 |

PSNR| Overall: 16.751 | R: 11.980 | G: inf000 | B: inf000 |

Structural Similarity Index: 0.8894

PlayPen_ProjectSphere

Status: Passed

Original:

PlayPen_ProjectSphere10 original

New:

PlayPen_ProjectSphere10 new

Comparison Summary:

Images are identical.

PlayPen_Projection

Status: Passed

Original:

PlayPen_Projection10 original

New:

PlayPen_Projection10 new

Comparison Summary:

Images are identical.

PlayPen_ReflectedBillboards

Status: Passed

Original:

PlayPen_ReflectedBillboards175 original

New:

PlayPen_ReflectedBillboards175 new

Comparison Summary:

211 pixels differed.

MSE | Overall: 0.0000 | R: 0.0000 | G: 0.0000 | B: 0.0000 |

PSNR| Overall: 84.431 | R: 85.223 | G: 85.762 | B: 82.876 |

Structural Similarity Index: 1.0000

PlayPen_ReinitialiseEntityAlteredMesh

Status: Failed

Original:

PlayPen_ReinitialiseEntityAlteredMesh100 original

New:

PlayPen_ReinitialiseEntityAlteredMesh100 new

Comparison Summary:

75035 pixels differed.

MSE | Overall: 0.0000 | R: 0.0000 | G: 0.0000 | B: 0.0000 |

PSNR| Overall: 41.242 | R: 42.183 | G: 40.967 | B: 40.713 |

Structural Similarity Index: 0.9966

PlayPen_RibbonTrail

Status: Passed

Original:

PlayPen_RibbonTrail150 original

New:

PlayPen_RibbonTrail150 new

Comparison Summary:

153 pixels differed.

MSE | Overall: 0.0000 | R: 0.0000 | G: 0.0000 | B: 0.0000 |

PSNR| Overall: 84.371 | R: 85.681 | G: 82.961 | B: 84.943 |

Structural Similarity Index: 1.0000

PlayPen_SRGBtexture

Status: Passed

Original:

PlayPen_SRGBtexture10 original

New:

PlayPen_SRGBtexture10 new

Comparison Summary:

Images are identical.

PlayPen_SceneNodeTracking

Status: Failed

Original:

PlayPen_SceneNodeTracking200 original

New:

PlayPen_SceneNodeTracking200 new

Comparison Summary:

189929 pixels differed.

MSE | Overall: 0.0030 | R: 0.0063 | G: 0.0017 | B: 0.0009 |

PSNR| Overall: 25.170 | R: 21.939 | G: 27.570 | B: 30.116 |

Structural Similarity Index: 0.8909

PlayPen_ShadowLod

Status: Failed

Original:

PlayPen_ShadowLod10 original

New:

PlayPen_ShadowLod10 new

Comparison Summary:

123306 pixels differed.

MSE | Overall: 0.0030 | R: 0.0028 | G: 0.0032 | B: 0.0029 |

PSNR| Overall: 25.221 | R: 25.485 | G: 24.859 | B: 25.345 |

Structural Similarity Index: 0.9480

PlayPen_SkeletalAnimation

Status: Failed

Original:

PlayPen_SkeletalAnimation100 original

New:

PlayPen_SkeletalAnimation100 new

Comparison Summary:

8131 pixels differed.

MSE | Overall: 0.0000 | R: 0.0000 | G: 0.0000 | B: 0.0000 |

PSNR| Overall: 48.282 | R: 51.182 | G: 45.642 | B: 50.149 |

Structural Similarity Index: 0.9969

PlayPen_StaticGeometry

Status: Failed

Original:

PlayPen_StaticGeometry10 original

New:

PlayPen_StaticGeometry10 new

Comparison Summary:

124083 pixels differed.

MSE | Overall: 0.0000 | R: 0.0000 | G: 0.0000 | B: 0.0000 |

PSNR| Overall: 47.417 | R: 47.587 | G: 46.727 | B: 48.041 |

Structural Similarity Index: 0.9974

PlayPen_StaticGeometryWithLOD

Status: Failed

Original:

PlayPen_StaticGeometryWithLOD10 original

New:

PlayPen_StaticGeometryWithLOD10 new

Comparison Summary:

119975 pixels differed.

MSE | Overall: 0.0000 | R: 0.0000 | G: 0.0000 | B: 0.0000 |

PSNR| Overall: 43.932 | R: 44.865 | G: 43.549 | B: 43.514 |

Structural Similarity Index: 0.9872

PlayPen_StencilGlow

Status: Failed

Original:

PlayPen_StencilGlow100 original

New:

PlayPen_StencilGlow100 new

Comparison Summary:

35396 pixels differed.

MSE | Overall: 0.0000 | R: 0.0000 | G: 0.0000 | B: 0.0000 |

PSNR| Overall: 48.318 | R: 48.295 | G: 45.871 | B: 54.549 |

Structural Similarity Index: 0.9975

PlayPen_StencilShadows

Status: Passed

Original:

PlayPen_StencilShadows20 original

New:

PlayPen_StencilShadows20 new

Comparison Summary:

Images are identical.

PlayPen_SubEntityVisibility

Status: Passed

Original:

PlayPen_SubEntityVisibility250 original

New:

PlayPen_SubEntityVisibility250 new

Comparison Summary:

3100 pixels differed.

MSE | Overall: 0.0000 | R: 0.0000 | G: 0.0000 | B: 0.0000 |

PSNR| Overall: 52.649 | R: 51.514 | G: 51.865 | B: 55.631 |

Structural Similarity Index: 0.9996

PlayPen_TextureShadows

Status: Failed

Original:

PlayPen_TextureShadows10 original

New:

PlayPen_TextureShadows10 new

Comparison Summary:

50834 pixels differed.

MSE | Overall: 0.0077 | R: 0.0061 | G: 0.0079 | B: 0.0092 |

PSNR| Overall: 21.090 | R: 22.122 | G: 20.969 | B: 20.359 |

Structural Similarity Index: 0.8987

PlayPen_TextureShadowsIntegrated

Status: Passed

Original:

PlayPen_TextureShadowsIntegrated10 original

New:

PlayPen_TextureShadowsIntegrated10 new

Comparison Summary:

Images are identical.

PlayPen_TextureShadowsIntegratedPSSM

Status: Failed

Original:

PlayPen_TextureShadowsIntegratedPSSM10 original

New:

PlayPen_TextureShadowsIntegratedPSSM10 new

Comparison Summary:

44162 pixels differed.

MSE | Overall: 0.0956 | R: 0.0015 | G: 0.1427 | B: 0.1427 |

PSNR| Overall: 10.191 | R: 27.984 | G: 8.4544 | B: 8.4544 |

Structural Similarity Index: 0.9008

PlayPen_TextureShadowsTransparentCaster

Status: Failed

Original:

PlayPen_TextureShadowsTransparentCaster10 original

New:

PlayPen_TextureShadowsTransparentCaster10 new

Comparison Summary:

36137 pixels differed.

MSE | Overall: 0.0003 | R: 0.0003 | G: 0.0003 | B: 0.0003 |

PSNR| Overall: 34.766 | R: 34.681 | G: 34.611 | B: 35.016 |

Structural Similarity Index: 0.9922

PlayPen_TransparencyMipMaps

Status: Passed

Original:

PlayPen_TransparencyMipMaps10 original

New:

PlayPen_TransparencyMipMaps10 new

Comparison Summary:

278 pixels differed.

MSE | Overall: 0.0000 | R: 0.0000 | G: 0.0000 | B: 0.0000 |

PSNR| Overall: 81.101 | R: 81.273 | G: 80.525 | B: 81.574 |

Structural Similarity Index: 1.0000

PlayPen_TwoSidedLighting

Status: Passed

Original:

PlayPen_TwoSidedLighting10 original

New:

PlayPen_TwoSidedLighting10 new

Comparison Summary:

Images are identical.

PlayPen_ViewportNoShadows

Status: Failed

Original:

PlayPen_ViewportNoShadows10 original

New:

PlayPen_ViewportNoShadows10 new

Comparison Summary:

15007 pixels differed.

MSE | Overall: 0.0000 | R: 0.0000 | G: 0.0000 | B: 0.0000 |

PSNR| Overall: 51.097 | R: 50.450 | G: 49.453 | B: 55.312 |

Structural Similarity Index: 0.9983

PlayPen_WindowedViewportMode

Status: Passed

Original:

PlayPen_WindowedViewportMode10 original

New:

PlayPen_WindowedViewportMode10 new

Comparison Summary:

5690 pixels differed.

MSE | Overall: 0.0000 | R: 0.0000 | G: 0.0000 | B: 0.0000 |

PSNR| Overall: 54.584 | R: 54.076 | G: 52.673 | B: 59.489 |

Structural Similarity Index: 0.9996

Texture Effects

Status: Failed

Original:

Texture Effects50 original

New:

Texture Effects50 new

Comparison Summary:

1867 pixels differed.

MSE | Overall: 0.0025 | R: 0.0014 | G: 0.0030 | B: 0.0029 |

PSNR| Overall: 26.003 | R: 28.254 | G: 25.141 | B: 25.266 |

Structural Similarity Index: 0.9807

Transparency

Status: Passed

Original:

Transparency25 original

New:

Transparency25 new

Comparison Summary:

Images are identical.

VTests_CubeMapping

Status: Passed

Original:

VTests_CubeMapping10 original

New:

VTests_CubeMapping10 new

Comparison Summary:

6 pixels differed.

MSE | Overall: 0.0000 | R: 0.0000 | G: 0.0000 | B: 0.0000 |

PSNR| Overall: 99.994 | R: 103.00 | G: 99.994 | B: 98.233 |

Structural Similarity Index: 1.0000

VTests_Particles

Status: Passed

Frame 35:

Original:

VTests_Particles35 original

New:

VTests_Particles35 new

Comparison Summary:

Images are identical.

Frame 500:

Original:

VTests_Particles500 original

New:

VTests_Particles500 new

Comparison Summary:

Images are identical.

VTests_StencilShadows

Status: Failed

Original:

VTests_StencilShadows10 original

New:

VTests_StencilShadows10 new

Comparison Summary:

52909 pixels differed.

MSE | Overall: 0.0005 | R: 0.0011 | G: 0.0003 | B: 0.0001 |

PSNR| Overall: 32.602 | R: 29.406 | G: 34.518 | B: 38.293 |

Structural Similarity Index: 0.9721
